Multi Function Pneumatic Beveling Tools With Self Centering
Clamping System
Product Introduction

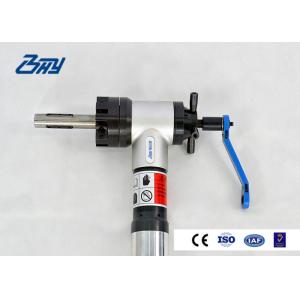

Bohyar’s electric pipe beveling machine is a lightweight, portable
end prep beveler to produce precise, highly repeatable weld preps,
which is widely used in boiler, pharmaceutical industry and other
areas. It can process various material pipes such as stainless
steel carbon steel, alloy steel under different inner mounted size
from 12.5mm to 240mm.Our BPP pipe beveler is the ideal choice for
various pipe end cutting and beveling.
Features
■ Compact structure and good appearance, high strength aluminum body
■ Lightweight and high-strength aluminum - ensure portability.
■ Interchangeability of components - allows accessories & tool
slides to mount to multiple ring sizes
■ Cold machining - no heat affected zones.
■ Precision-manufactured tool slides - ensure absolute rigidity.
■ Quick installation, positioning the machine in the center of the
tube and install the appropriate tool to complete the preparation.
■ Well-adapted, you can make the speed adjust depend on the working
conditions.
Technical Parameters
Product series
Model | Processing range (IDmm) | Wall thickness (mm) | Rated power (kw) | Rotating speed (rpm) |
BPP1E kit1 | 12.5-15 | ≤3 | 1.43 | 3-70 |
BPP1E kit2 | 15-20 | ≤5 | 1.43 | 3-70 |
BPP1E kit3 | 20-28 | ≤6 | 1.43 | 3-70 |
BPP3E/ BPP3P | 26-79 | ≤15 | 1.43 | 3-70 |
BPP3PE | 36-90 | ≤15 | 1.43 | 3-50 |
BPP4E/ BPP4P | 45-105 | ≤20 | 1.43 | 34 |
BPP6E/ BPP6P | 65-159 | ≤20 | 1.43 | 34 |
BPP9E | 80-240 | ≤15 | 1.43 | 16 |
*Electric: Rated voltage of 220V, 50/60Hz
Safety Instructions
Safety is our priority when pipe beveling machines are designed,
and ergonomics is also taken into consideration to ensure product
safety and reliability.
■ Operators should read the safety instructions carefully before
operation and properly keep them for reference at any time.
■ Operators should be well aware of the products and fully familiar
with the key points of product operations.
■ Please wear suitable working clothes and safety shoes before
operation.
■ Before operation, ensure the operators are kept away from any
live part such as motors and cables.
■ Operators should be kept away from the rotating cutter head as
far as possible for safety when the machine is working.
■ The machines should be used in clean environment and should not
be used in messy circumstances; if it is necessary to be used in
dusty conditions, please wear masks before operation.
■ For electrical pipe beveling machines, please check whether the
voltage of the power supply is correct; for pneumatic pipe beveling
machines please check whether air pressure and flow of the air
source are correct.
Information and Feedback
Maintenance Information: Before the machine or any of its
accessories is returned for maintenance, please call Bohyar
Company. We will give suggestions on transportation and handover of
the machine or accessories, and estimate the time and cost of
corresponding maintenance.
Feedback: To constantly improve the satisfaction of users with the
product quality and service, we will appreciate if you contact us
to present any better operation or service methods of the equipment
or any suggestion on the optimization of any technical data. We
will consider and undertake to validate your precious suggestions,
so as to modify or update the product and operation manual for
improvement.
